Single precision on an Apple GPU

A run can hold its field and evaluate its nonlinear response in binary32 with precision="single", which halves the memory of every field-sized buffer and is what an Apple-silicon GPU computes in. Whether a problem keeps its accuracy in binary32 is a property of the problem, so this example runs two of them both ways and compares: the photoionisation blue shift of Photoionisation-induced soliton blue-shift, here on an envelope grid with the envelope-grid plasma, and a short radial argon filament on a field grid. Each runs in binary64 on backend="auto" and in binary32, where "auto" chooses the mlx backend on a Mac with a Metal GPU.

What to look for. The two precisions’ output spectra lie on top of each other on a 40 dB scale; their difference, normwise over the whole saved field, is of order \(10^{-5}\) for the capillary and \(10^{-6}\) for the filament – set by the controller’s tolerance and the binary32 propagator’s rounding, which accumulates over the run’s steps – and the energy, the spectral centroid, the electron density, the peak intensity and the beam radius agree to the digits printed. At these sizes much of each run’s wall time is its set-up: the GPU run took about 0.6 times native’s binary64 time for the capillary and the same for the filament on a MacBook Pro M5 Max, while the envelope plasma’s step itself is several times faster on the GPU (Single precision).

What is approximate. Single precision’s tolerance floor is rtol = 1e-6 (the default here); a problem that amplifies small perturbations strongly, such as a noise-free comb-to-continuum, reaches its accuracy over a shorter length, as the survival record states. Timings depend on the machine and its load.

The capillary, in both precisions

import time

import matplotlib.pyplot as plt
import numpy as np

from solprop.constants import C
from solprop.driver import Simulation, SimulationSettings, prop_capillary
from solprop.grid import FieldGrid, RadialGrid
from solprop.nonlinear.optmat_rates import OptmatRate
from solprop.nonlinear.responses import KerrResponse, PlasmaResponse
from solprop.physdata import gamma3
from solprop.processing import get_spectral_density
from solprop.pulses import GaussianPulse, SpatialPulse
from solprop.spatial import SpatialMedium, critical_power
from solprop.stepper import PIController


def capillary(precision):
    """Run the blue-shift capillary on an envelope grid; return it and its time."""
    started = time.perf_counter()
    run = prop_capillary(
        13e-6,
        0.4,
        "Ar",
        1.7,
        lambda0=800e-9,
        fwhm=30e-15,
        energy=3e-6,
        loss=False,
        trange=400e-15,
        wavelength_limits=(300e-9, 4e-6),
        envelope=True,
        plasma=True,
        n_save=101,
        precision=precision,
        progress="none",
    )
    return run, time.perf_counter() - started


runs = {precision: capillary(precision) for precision in ("double", "single")}
for precision, (run, seconds) in runs.items():
    print(f"{precision}: {seconds:.1f} s on {run.metadata.backend.name}")


def relative(a, b):
    """Return the normwise relative difference of two arrays."""
    return float(np.linalg.norm(a - b) / np.linalg.norm(b))


double, single = runs["double"][0], runs["single"][0]
print(
    "field difference at the end "
    f"{relative(single.fields()[-1], double.fields()[-1]):.1e}"
)

double: 11.6 s on native
single: 6.5 s on mlx
field difference at the end 1.6e-05

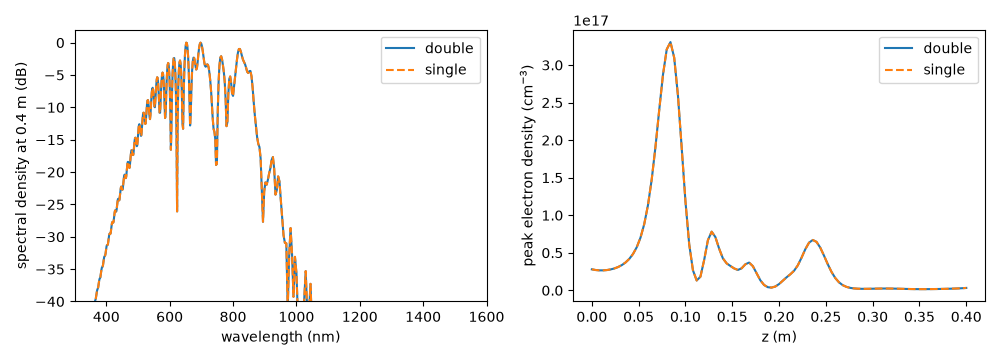

The spectra and the plasma

fig, (left, right) = plt.subplots(1, 2, figsize=(10.0, 3.6))
for precision, style in (("double", "-"), ("single", "--")):
    run = runs[precision][0]
    omega, spectral = get_spectral_density(run, "omega")
    keep = omega > 0
    wavelength = 2 * np.pi * C / omega[keep]
    level = spectral[-1, keep] / spectral[-1, keep].max()
    left.plot(
        wavelength * 1e9,
        10 * np.log10(np.maximum(level, 1e-6)),
        style,
        label=precision,
    )
    z = np.asarray(run["z"])
    density = np.asarray(run["stats/electron_density"]).reshape(z.size, -1).max(axis=1)
    right.plot(z, density * 1e-6, style, label=precision)
    centroid = 2 * np.pi * C * np.sum(spectral[-1]) / np.sum(spectral[-1] * omega)
    energy = float(np.asarray(run["stats/energy"]).ravel()[-1])
    print(
        f"{precision}: centroid {centroid * 1e9:.2f} nm, energy {energy * 1e6:.5f} uJ, "
        f"peak electron density {density.max() * 1e-6:.4e} cm^-3"
    )
left.set_xlim(300, 1600)
left.set_ylim(-40, 2)
left.set_xlabel("wavelength (nm)")
left.set_ylabel("spectral density at 0.4 m (dB)")
left.legend()
right.set_xlabel("z (m)")
right.set_ylabel("peak electron density (cm$^{-3}$)")
right.legend()
fig.tight_layout()

double: centroid 670.44 nm, energy 1.15942 uJ, peak electron density 3.3057e+17 cm^-3
single: centroid 670.44 nm, energy 1.15942 uJ, peak electron density 3.3058e+17 cm^-3

A radial filament, in both precisions

A 30 fs pulse at three times the critical power for self-focusing, 3 cm in argon at one bar, on 256 radial nodes in 2 mm and a field grid: Kerr self-focusing and the field-grid plasma on every node.

medium = SpatialMedium("Ar", 1.0)
chi3 = gamma3("Ar", wavelength=800e-9)
grid = FieldGrid.from_limits(0.03, 800e-9, (350e-9, 2e-6), 250e-15)
carrier = 2 * np.pi * C / 800e-9
density = float(medium.density(np.array([0.0]))[0])
index = float(np.real(medium.index(np.array([carrier]))[0]))
power = 3.0 * critical_power(800e-9, chi3 * density, index=index)
energy = power * 30e-15 * np.sqrt(np.pi / (4 * np.log(2)))
pulse = SpatialPulse(
    GaussianPulse(wavelength=800e-9, fwhm=30e-15, energy=energy), 100e-6
)
responses = [
    KerrResponse(chi3, thg=False),
    PlasmaResponse("Ar", OptmatRate("Ar", 800e-9)),
]
filaments = {}
for precision in ("double", "single"):
    started = time.perf_counter()
    filaments[precision] = Simulation.from_radial(
        grid,
        RadialGrid(2e-3, 256),
        medium,
        responses,
        pulse,
        settings=SimulationSettings(
            controller=PIController(rtol=1e-6, atol=0.0),
            dz_max=1e-3,
            dz_init=3e-5,
            save_planes=list(np.linspace(0.0, 0.03, 31)[1:]),
            ionisation_field_range=(1e7, 1e11),
            precision=precision,
        ),
    ).run()
    run = filaments[precision]
    print(
        f"{precision}: {time.perf_counter() - started:.1f} s on "
        f"{run.metadata.backend.name}"
    )
ends = [filaments[precision].fields()[-1] for precision in ("single", "double")]
print(f"field difference at 3 cm {relative(*ends):.1e}")

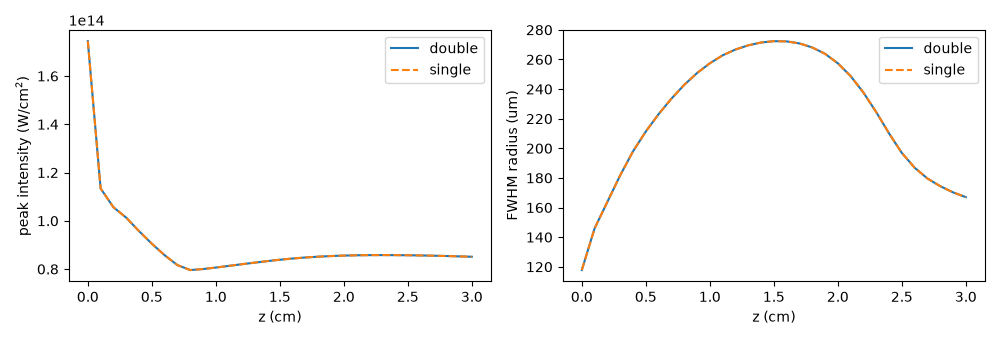

fig, (left, right) = plt.subplots(1, 2, figsize=(10.0, 3.4))
for precision, style in (("double", "-"), ("single", "--")):
    run = filaments[precision]
    z = np.asarray(run["z"])
    peak = np.asarray(run["stats/peak_intensity"]).ravel()
    radius = np.asarray(run["stats/fwhm_r"]).ravel()
    left.plot(z * 1e2, peak * 1e-4, style, label=precision)
    right.plot(z * 1e2, radius * 1e6, style, label=precision)
    print(
        f"{precision}: peak intensity {peak.max() * 1e-4:.4e} W/cm^2, "
        f"final FWHM radius {radius[-1] * 1e6:.3f} um"
    )
left.set_xlabel("z (cm)")
left.set_ylabel("peak intensity (W/cm$^2$)")
left.legend()
right.set_xlabel("z (cm)")
right.set_ylabel("FWHM radius (um)")
right.legend()
fig.tight_layout()

double: 3.7 s on native
single: 2.7 s on mlx
field difference at 3 cm 1.7e-06
double: peak intensity 1.7445e+14 W/cm^2, final FWHM radius 167.043 um
single: peak intensity 1.7445e+14 W/cm^2, final FWHM radius 167.043 um
