Mode conversion and loss in a taper with a coherent wall

A capillary whose bore varies along z is written in a basis attached to the local radius, and a moving basis costs a term: the connection

C_mn = (a'/a) 2 s_m s_n u_m u_n / (u_m^2 - u_n^2), C_nn = 0,

real and antisymmetric in the true-power amplitude, so on its own it moves no power out of the retained set – it moves it between the channels, and the channels it fills are the lossier ones (Mode conversion in a capillary taper).

prop_capillary(taper, ..., wall=CoherentWall()) carries it, and so does a multimode taper without a wall, by default, beside each channel’s own Marcatili loss (the taper coupling, Multimode capillaries: the coherent wall, tapers and gradients); taper_coupling=False is the adiabatic route, on which every channel follows its local mode and linear taper conversion is omitted – the comparison drawn here. The run is cut into sections on the linear operator’s own intervals; inside each, the complete wall generator is frozen at the midpoint and integrated exactly, and everything the freezing leaves out – the generator’s variation and the connection – is put back as an explicit term in the Runge-Kutta source. This example runs a 50 to 40 um transition over a fifth of a millimetre, launched into HE_11 alone, and checks three numbers:

• the walled taper keeps 0.9287 of the arriving energy in HE_11 and puts 0.038 in HE_12 and 0.033 in HE_13, where the adiabatic route leaves 5e-18 there;

• it therefore loses 1.87e-3 of the launched energy, more than either of the two straight bores it runs between, where the adiabatic taper loses 6.4e-4;

• freezing is a rearrangement and not an approximation: one frozen section per interval and four of them agree to 1.9e-10 of the state.

Every channel keeps its own normalisation. The cumulative operator beside a coupled block must act on every channel alike, so it renormalises a vacuum amplitude along the varying index by the lowest channel’s effective index; the flow’s own diagonal carries the rest of each channel’s, -(1/2) d ln(w_n/w_1)/dz, so the upper channels’ amplitudes are good to the step error.

import warnings

import matplotlib.pyplot as plt
import numpy as np

from solprop.boundaries import absorber
from solprop.driver import prop_capillary
from solprop.grid import FieldGrid
from solprop.modes import CoherentWall
from solprop.profiles import PiecewiseLinear
from solprop.stepper import FixedSchedule

The taper: straight, a linear transition, straight – the shape of a 125 to 62.5 um capillary taper, scaled to the radius and length a ten-step run allows. The corners of the profile are where the sections start and end, and the fixed schedule lands on every one of them (a schedule that comes near a corner without landing on it is refused by name).

length, steps = 2e-4, 10
taper = PiecewiseLinear.from_stages(
    (0.0, 6e-5, 1.4e-4, 2e-4), [50e-6, 50e-6, 40e-6, 40e-6]
)
grid = FieldGrid.from_limits(length, 800e-9, (400e-9, 1.6e-6), 300e-15)


def run(wall, radius=taper, taper_coupling=True):
    """Propagate three channels ten steps along `radius`, with or without a wall."""
    # The band runs past helium's and silica's fitted ranges and the geometry is a
    # marginal one on purpose, so that a fifth of a millimetre shows the wall: both
    # warn, and both are silenced here, as is the advisory step of the coupled flow.
    with warnings.catch_warnings():
        warnings.simplefilter("ignore")
        return prop_capillary(
            radius,
            length,
            "He",
            1.0,
            lambda0=800e-9,
            grid=grid,
            absorber=absorber(grid, boundary_length=1e3),
            fwhm=30e-15,
            energy=1e-9,
            modes=3,
            n_save=11,
            backend="numpy_ref",
            wall=wall,
            taper_coupling=taper_coupling,
            schedule=FixedSchedule(np.full(steps, length / steps)),
            dz_max=length / steps,
            dz_init=length / steps,
            plasma=False,
            raman=False,
            progress="none",
        )


def channel_energy(output):
    """Return the positions and the energy in each channel at every save plane."""
    planes = output.planes()
    energy = np.array(
        [np.asarray(plane.stats["energy"]).reshape(3, -1)[:, 0] for plane in planes]
    )
    return np.array([plane.z for plane in planes]), energy


walled, plain = run(CoherentWall()), run(None, taper_coupling=False)
coupled = run(None)
straight = {radius: run(CoherentWall(), radius) for radius in (50e-6, 40e-6)}

for name, output in (
    ("taper, CoherentWall()", walled),
    ("taper, no wall", coupled),
    ("taper, adiabatic", plain),
    ("50 um straight, wall", straight[50e-6]),
    ("40 um straight, wall", straight[40e-6]),
):
    _, energy = channel_energy(output)
    lost = 1.0 - energy[-1].sum() / energy[0].sum()
    shares = energy[-1] / energy[-1].sum()
    print(
        f"{name:22s} lost {lost:.3e}; of what arrives: HE_11 {shares[0]:.5f}, "
        f"HE_12 {shares[1]:.2e}, HE_13 {shares[2]:.2e}"
    )

taper, CoherentWall()  lost 1.667e-03; of what arrives: HE_11 0.92811, HE_12 3.86e-02, HE_13 3.33e-02
taper, no wall         lost 6.265e-04; of what arrives: HE_11 0.92733, HE_12 3.88e-02, HE_13 3.38e-02
taper, adiabatic       lost 6.423e-04; of what arrives: HE_11 1.00000, HE_12 4.85e-18, HE_13 1.02e-20
50 um straight, wall   lost 4.409e-04; of what arrives: HE_11 1.00000, HE_12 2.57e-07, HE_13 6.27e-07
40 um straight, wall   lost 8.575e-04; of what arrives: HE_11 1.00000, HE_12 9.76e-07, HE_13 2.34e-06

What the record says about the sectioning: how many frozen sections the run was cut into, the Chebyshev degree along z the generator was resolved at, whether a connection was carried, and the advisory step a declared dz_max is warned against. Ten steps of 20 um sit inside it.

flow = walled.metadata.modal["flow"]
print(
    f"{flow['n_sections']} sections, n_deg {flow['n_deg']}, "
    f"connection {flow['connection']}, advisory step {flow['advisory_step']:.3e} m"
)

4 sections, n_deg 17, connection True, advisory step 1.053e-04 m

Freezing is a rearrangement. Four frozen sections per interval freeze four different blocks and carry four different residuals, and the answer does not move: the residual is evaluated exactly, so what sections buys is a smaller explicit term, not a new physical model. At finite step size, changing this split can still change the numerical error, so section and step refinement are distinct checks.

finer = run(CoherentWall(sections=4))
coarse_field = walled.planes()[-1].field
fine_field = finer.planes()[-1].field
departure = np.max(np.abs(fine_field - coarse_field)) / np.max(np.abs(coarse_field))
print(f"one section per interval against four: {departure:.2e} of the state")

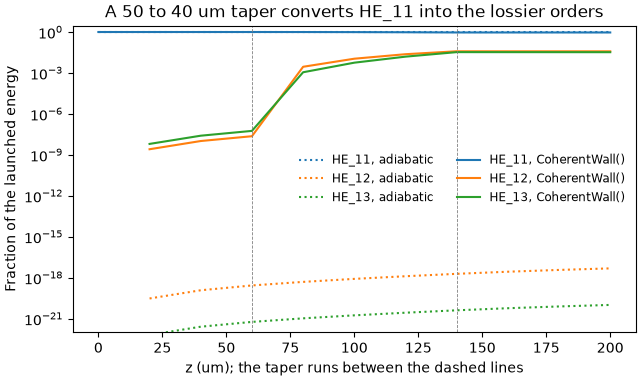

fig, ax = plt.subplots(figsize=(6.4, 3.8), constrained_layout=True)
for output, style, label in (
    (plain, ":", "adiabatic"),
    (walled, "-", "CoherentWall()"),
):
    z, energy = channel_energy(output)
    shares = energy / energy[0, 0]
    shares = np.where(shares > 0.0, shares, np.nan)
    for channel in range(3):
        ax.semilogy(
            z * 1e6,
            shares[:, channel],
            style,
            color=f"C{channel}",
            label=f"HE_1{channel + 1}, {label}",
        )
for corner in (60.0, 140.0):
    ax.axvline(corner, color="grey", linewidth=0.6, linestyle="--")
ax.set(
    xlabel="z (um); the taper runs between the dashed lines",
    ylabel="Fraction of the launched energy",
    title="A 50 to 40 um taper converts HE_11 into the lossier orders",
    ylim=(1e-22, 3.0),
)
ax.legend(frameon=False, fontsize="small", ncol=2)
plt.show()

one section per interval against four: 3.42e-05 of the state

Related reading

Continue with Mode conversion in a capillary taper for the model, options and limits, and Assessing numerical accuracy for convergence checks. For a paced introduction to propagation, start with the Introduction.
